Benefits
• Smaller size saves board space and cost
• Many product choices give engineers more design
flexibility
• Compatible with high-volume electronics assembly
• Assists in meeting regulatory requirements
• Higher voltage ratings allow use in new applications
Features
• RoHS compliant
• Halogen free (refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm)
• Broadest range of resettable devices available in the industry
• Current ratings from 0.05 to 3A
• Voltage ratings from 6V computer and electronic applications to 60V telecom applications
• Agency recognition: UL, CSA, TÜV
• Small footprint
• Fast time-to-trip
• Low resistance
Electrical Characteristics
| Part Number |
IH (A) |
IT (A) |
VMAX (VDC) |
IMAX (A) |
PD MAX (W) |
Max.Time-to-Trip |
RMIN (Ω) |
R1MAX(Ω) |
| (A) |
(S) |

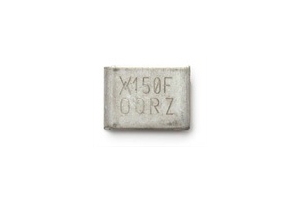

| SMD150F |
1.50 |
3.00 |
15 |
40 |
1.90 |
8.00 |
5.00 |
0.060 |
0.250 |
| SMD150F/33 |
1.50 |
3.00 |
33 |
40 |
1.90 |
8.00 |
5.00 |
0.080 |
0.230 |
| SMDH160 |
1.60 |
3.20 |
16 |
70 |
2.20 |
8.00 |
15.00 |
0.050 |
0.150 |
| SMD185F |
1.85 |
3.60 |
33 |
40 |
1.50 |
8.00 |
5.00 |
0.065 |
0.165 |
| SMD200F |
2.00 |
4.00 |
15 |
40 |
1.90 |
8.00 |
12.00 |
0.050 |
0.125 |
| SMD250F |
2.50 |
5.00 |
15 |
40 |
1.90 |
8.00 |
25.00 |
0.035 |
0.085 |
